Cemre Maschinen Produkte
Automatische Becherfuller

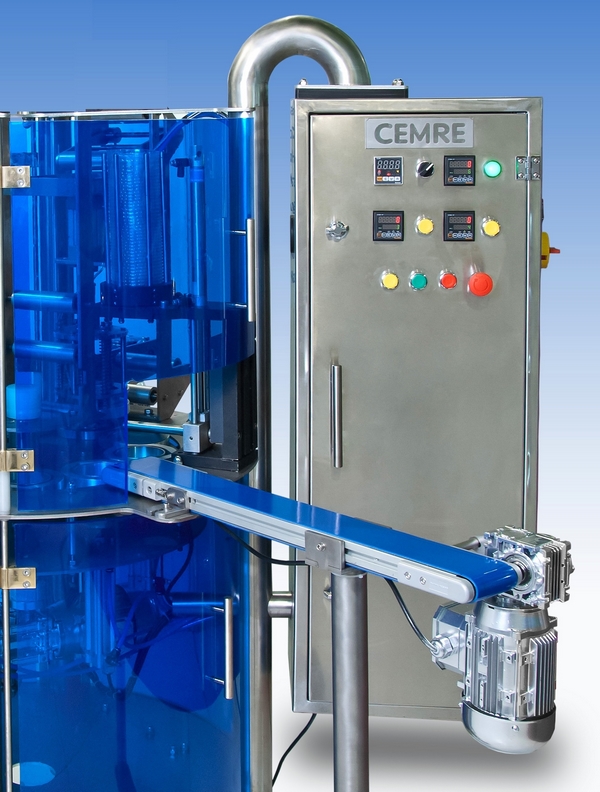

CEM-1 model Automatische Becherfuller
Cem-1 Model Rotary Yogurt filler: 1500 Cups / Hour
(depending on volume and filling viscosity)
Standart Model Machine Stations
- Cup dropping
- Filling station
- Alu-lid placing ( pre-cuted lid )
- Sealing
- Dating
- Exit conveyor
Technische Spezifikationen
| MODEL | Cem-1 |
| CAPACITY | 1.500 / per hour |
| CUP SIZE | Max. 125 mm diameter plastic cups. |
| FILLING RANGE | Min : 50 gr., Max : 500 gr |
| DIMENSIONS | 100 x 100 x 180 cm |
| WEIGHT | 400 kg |
| PACKING | Wooden Chest |
| ELECTRICAL | Relay System |
| PNEUMATICS | Turkish and Europa brands |
| REDUCTOR MOTOR | Turkish made |
| AIR PRESSURE | 6/8 bar |
| TENSION | 380 Volt - 50 Hertz - 3 Phase |
| CHASSIS | Machine is surrounded by flexi-glass |
| BODY | AISI 304 SS Frame |
The Becherfüller Maschinen Has Three Photocell Chek-Points
- Photocell to control for filling if there is any cup or not. Thanks to this photocell system, the machine would not waste the product. If there is no cups, then the machine would not fill.
- Photocell control for the aluminum lids if there is no cup or not, thanks to this system if there is no cup then machine would not waste the aluminum lids.
- Photocell control for the sealing, thanks to this system, it checks if there is any aluminum lids on the cups or not, if there is no lids on the cups then the machine the cups will not reach the sealing unit and the machine stops.
Which products can fill with our Cem-1 Model cup filler ?
Natural yoghurt, fruit yoghurt, cream, fruit, marmalade, dressings, milk, cream cheese, pudding, ayran, salad margarine, honey, jam, pet food, quark, mayonnaise, jelly, butter, cosmetic creams, paste, mustard, soup, yogurt, Juice, water...
Which additional options are possible on the yoghurt cup filling sealer machine?
- Laminar flow-HEPA filter unit
- Second filling station for multiple products filling
- Recipe placing between lid and cap
- Cutting and sealing from roll lid
- UV-light for cup and lid sterilization
- CIP cleaning system
- Exit Turn Rotary table
