Cemre Maschinen Produkte
Handbuch Joghurtbecher Fuller

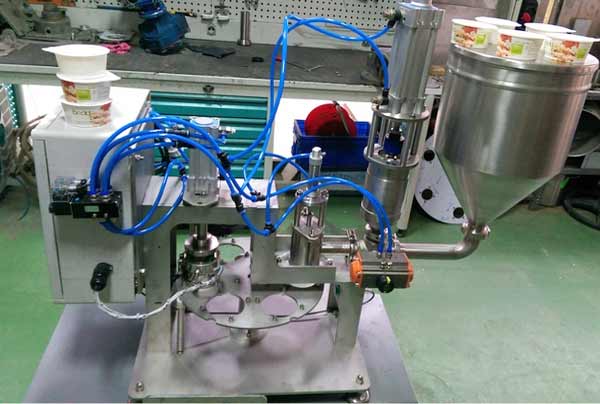

Cem-01 model Manual Rotary Table Plastic Cup Filling Sealer Machine
Cem-01 Model Manual Filler: 300-400 Cups / Hour
(depending worker speed)
Standart Model Machine Stations
- Filling station
- Sealing
- Dating (optional)
Technische Spezifikationen
| MODEL | Cem-01 |
| CAPACITY | 300-400 / per hour |
| CUP SIZE | Max. 110 mm diameter plastic cups. |
| FILLING RANGE | Min : 50 gr., Max : 500 gr |
| DIMENSIONS | 40 x 50 x 35 cm |
| WEIGHT | 110 kg |
| PACKING | Wooden Chest |
| ELECTRICAL | Relay System |
| PNEUMATICS | Turkish and Europa brands |
| AIR PRESSURE | 6/8 bar |
| TENSION | 380 Volt - 50 Hertz - 3 Phase |
| BODY | AISI 304 SS Frame |
Operation System
This machine is working manually. Rotary table rotates manually by the operator. Holes on rotary table sits to fingernail system at the end of every movement which carried out by the operator. Filling and sealing application are carried out automatically. Two line dating is also available one of which is for production date and another is for expiration date station optionally. Placing cups, lids and the taking ready cups from holes are carried out by the operator carried out by operator.
Which products can fill with our Cem-01 Model semi auto filler?
Natural yoghurt, fruit yoghurt, cream, fruit, marmalade, dressings, milk, cream cheese, pudding, ayran, salad margarine, honey, jam, pet food, quark, mayonnaise, jelly, butter, cosmetic creams, paste, mustard, soup, yogurt, Juice, water...
