Cemre Machine Produits

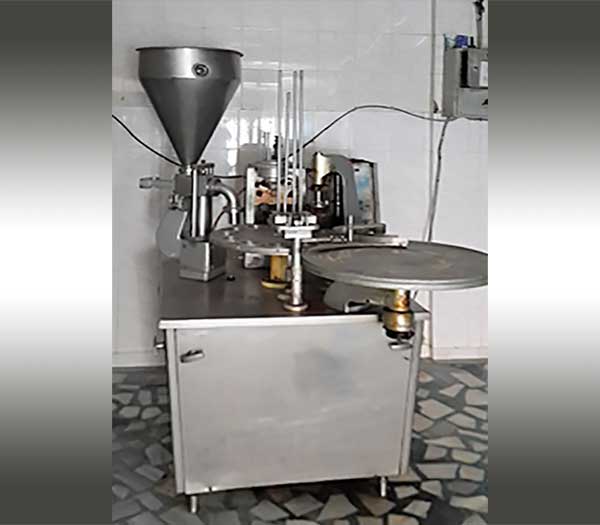

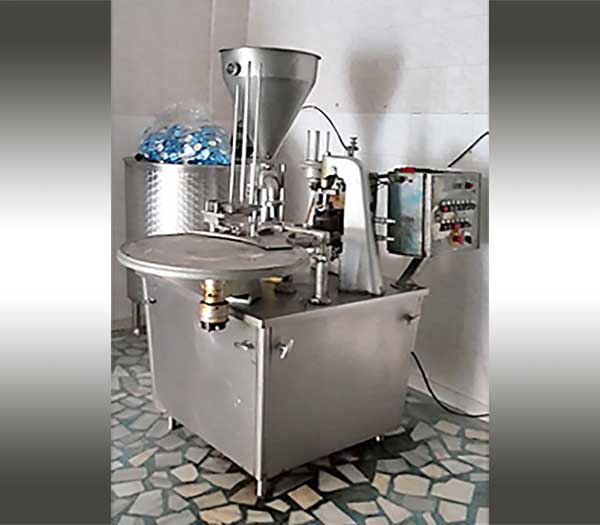

* Used Yogurt Filling Machine
* CEM-4 model Automatique Conditionneuse de Yaourt Rotative
Cem-4 Model pot filler: contionnement de 6000 pots/heure
(depending on volume and filling viscosity)
Standart Model Machine Stations
- Cup Dropping
- Filling Station
- Alu-lid Placing (pre-cuted lid)
- Sealing
- Dating
- Exit Conveyor
Technical Specifications
| MODEL | Cem-4 |
| CAPACITY | 6.000 / per hour |
| CUP SIZE | Max. 95 mm diameter plastic cups. |
| FILLING RANGE | Min : 50 gr. , Max : 500 gr |
| DIMENSIONS | 120 x 120 x 180 cm |
| WEIGHT | 900 kg |
| PACKING | Wooden Chest |
| ELECTRICAL | PLC Touch Screen |
| PNEUMATICS | Turkish and Europa brands |
| REDUCTOR MOTOR | Turkish made |
| AIR PRESSURE | 6/8 bar |
| TENSION | 380 Volt - 50 Hertz - 3 Phase |
| CHASSIS | Machine is surrounded by flexi-glass |
| BODY | AISI 304 SS Frame |
The cup filling machine has three photocell chek-points
- Photocell to control for filling if there is any cup or not. Thanks to this photocell system, the machine would not waste the product. If there is no cups, then the machine would not fill and stop.
- Photocell control for the aluminum lids if there is no cup or not, thanks to this system. If there is no cup then machine would not waste the aluminum lids.
- Photocell control for the sealing, thanks to this system, it checks if there is any aluminum lids on the cups or not. If there is no lids on the cups then the machine the cups will not reach the sealing unit and the machine stops.
Which Produits Can Fill With Our Cem-4 Model Cup Filler?
Natural yoghurt, fruit yoghurt, cream, fruit, marmalade, dressings, milk, cream cheese, pudding, ayran, salad margarine, honey, jam, pet food, quark, mayonnaise, jelly, butter, cosmetic creams, paste, mustard, soup, yogurt, Juice, water...
Which additional options are possible on the yoghurt cup filling sealing machine?
- 2nd cup size usage
- Laminar flow-HEPA filter unit
- Second filling station for multiple products filling
- Recipe placing between lid and cap
- Cutting and sealing from roll lid
- UV-light for cup and lid sterilization
- CIP cleaning system
- Servo Motor in Filling
- Exit Turn Rotary table
