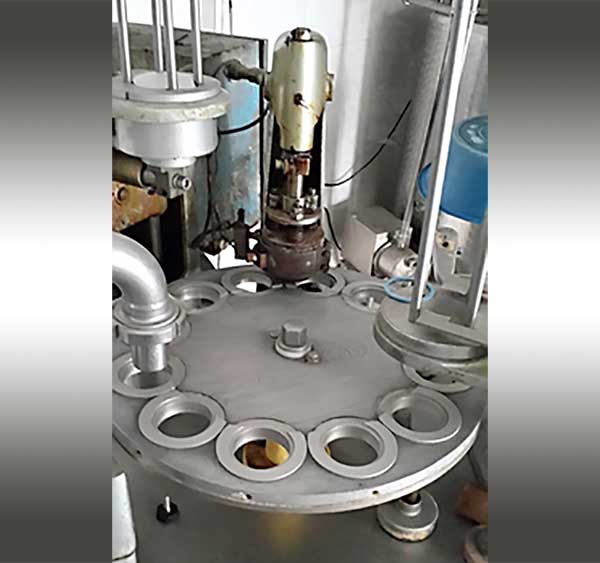

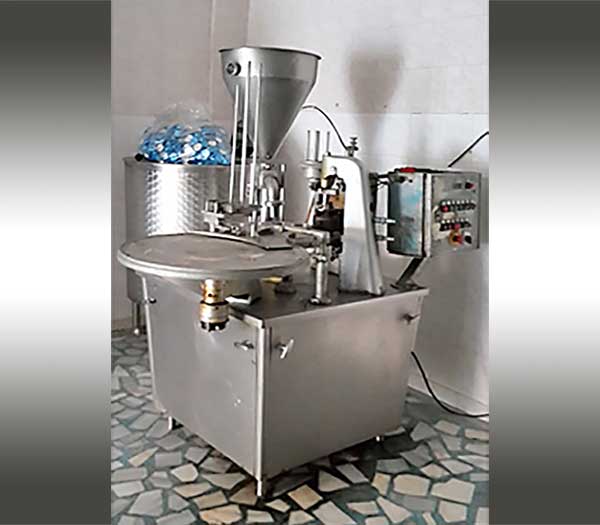

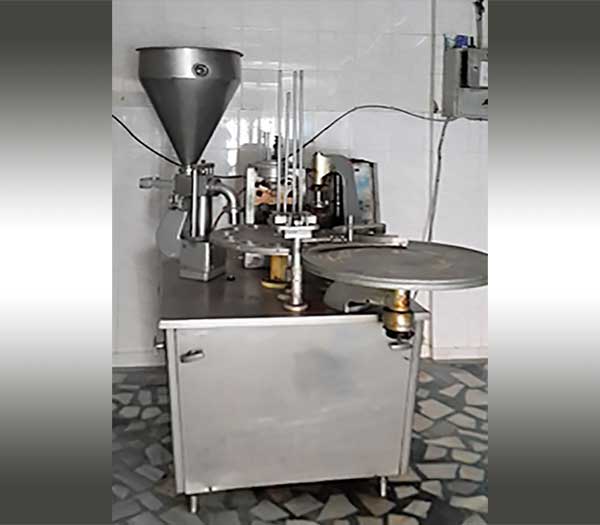

Used Yogurt Filling Machine

Cemre Machine Products

* Used Yogurt Filling Machine

* CEM-4 model Automatic Rotary Table Plastic Cup Filling Sealing Machine

Cem-4 Model pot filler: 6000 Cups / Hour

(depending on volume and filling viscosity)

Standart Model Machine Stations

  • Cup Dropping
  • Filling Station
  • Alu-lid Placing (pre-cuted lid)
  • Sealing
  • Dating
  • Exit Conveyor

Technical Specifications

CAPACITY 6.000 / per hour
CUP SIZE Max. 95 mm diameter plastic cups.
FILLING RANGE Min : 50 gr. , Max : 500 gr
DIMENSIONS 120 x 120 x 180 cm
WEIGHT 900 kg
PACKING Wooden Chest
PNEUMATICS Turkish and Europa brands
TENSION 380 Volt - 50 Hertz - 3 Phase
CHASSIS Machine is surrounded by flexi-glass
BODY AISI 304 SS Frame

The cup filling machine has three photocell chek-points

  • Photocell to control for filling if there is any cup or not. Thanks to this photocell system, the machine would not waste the product. If there is no cups, then the machine would not fill and stop.
  • Photocell control for the aluminum lids if there is no cup or not, thanks to this system. If there is no cup then machine would not waste the aluminum lids.
  • Photocell control for the sealing, thanks to this system, it checks if there is any aluminum lids on the cups or not. If there is no lids on the cups then the machine the cups will not reach the sealing unit and the machine stops.

Which Products Can Fill With Our Cem-4 Model Cup Filler?

Natural yoghurt, fruit yoghurt, cream, fruit, marmalade, dressings, milk, cream cheese, pudding, ayran, salad margarine, honey, jam, pet food, quark, mayonnaise, jelly, butter, cosmetic creams, paste, mustard, soup, yogurt, Juice, water...

Which additional options are possible on the yoghurt cup filling sealing machine?

  • 2nd cup size usage
  • Laminar flow-HEPA filter unit
  • Second filling station for multiple products filling
  • Recipe placing between lid and cap
  • Cutting and sealing from roll lid
  • UV-light for cup and lid sterilization
  • CIP cleaning system
  • Servo Motor in Filling
  • Exit Turn Rotary table
