CEM-4
MODEL

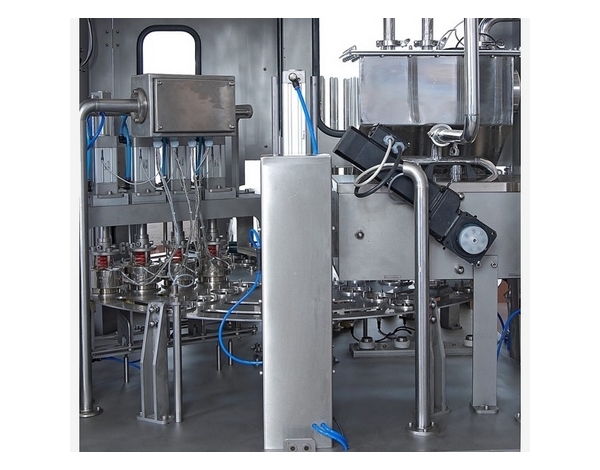

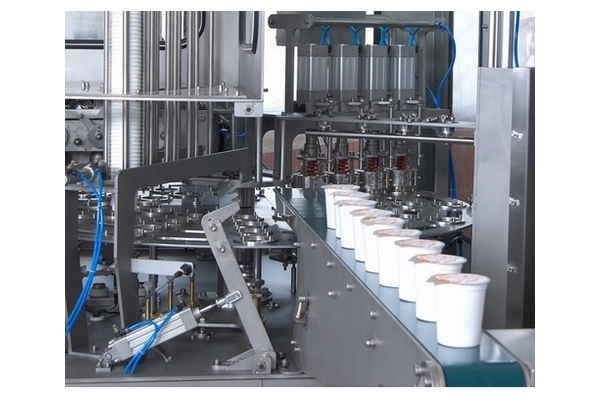

AUTOMATIC ROTARY TABLE PLASTIC CUP FILLING
SEALING MACHINE
Cem-4 Model pot filler : 6000 Cups / Hour depending on volume and filling viscosity
Standart model machine stations
1- Cup dropping
2- Filling station
3- Alu-lid placing ( pre-cuted lid )
4- Sealing
5- Dating
6- Exit conveyor
Tecnical Specifitions
MODEL | Cem-4 |
CAPACITY | 6.000 / per hour |
CUP SIZE | Max. 95 mm diameter plastic cups. |
FILLING RANGE | Min : 50 gr. , Max : 500 gr |
DIMENSIONS | 120 x 120 x 180 cm |
WEIGHT | 900 kg |
PACKING | Wooden Chest |
ELECTRICAL | PLC Touch Screen |
PNEUMATICS | Turkish and Europa brands |
REDUCTOR MOTOR | Turkish made |
AIR PRESSURE | 6/8 bar |
TENSION | 380 Volt - 50 Hertz - 3 Phase |
CHASSIS | Machine is surrounded by flexi-glass |
BODY | AISI 304 SS Frame |
The cup filling machine has three
photocell chek-points
1- Photocell to control for
filling if there is any cup or not. Thanks to
this photocell system, the machine would not
waste the product. If there is no cups, then the
machine would not fill.
2- Photocell control for the aluminum lids if
there is no cup or not, thanks to this system if
there is no cup then machine would not waste the
aluminum lids.
3- Photocell control for the sealing, thanks to
this system, it checks if there is any aluminum
lids on the cups or not, if there is no lids on
the cups then the machine the cups will not
reach the sealing unit and the machine stops.
Which products can fill with our Cem-4 Model cup filler ?
Natural yoghurt, fruit yoghurt, cream, fruit, marmalade, dressings, milk, cream cheese, pudding, ayran, salad margarine, honey, jam, pet food, quark, mayonnaise, jelly, butter, cosmetic creams, paste, mustard, soup, yogurt, Juice, water...
Which additional options are possible on the yoghurt cup filling sealing machine?
-2nd cup size usage
-Laminar flow-HEPA filter unit
-Second filling station for multiple products
filling
-Recipe placing between lid and cap
-Cutting and sealing from roll lid
-UV-light for cup and lid sterilization
-CIP cleaning system
-Servo Motor in Filling
-Exit Turn Rotary table
