CEM-01 MODEL

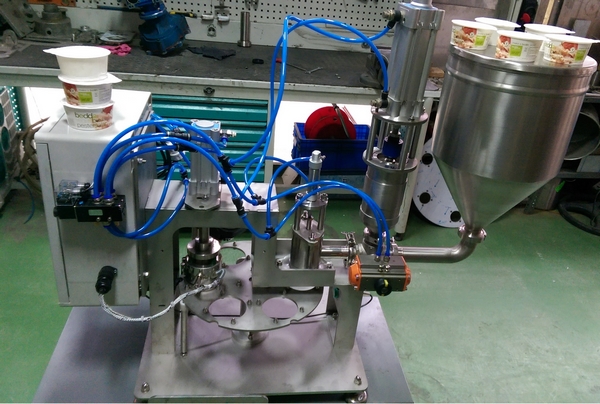

MANUAL ROTARY TABLE PLASTIC CUP FILLING SEALER MACHINE

Cem-01 Model Manual filler : 300-400 Cups / Hour depending worker speed

Standart model machine stations

1- Filling station
2- Sealing
3- Dating (optional)

Tecnical Specifitions

MODEL	Cem-01
CAPACITY	300-400 / per hour
CUP SIZE	Max. 110 mm diameter plastic cups.
FILLING RANGE	Min : 50 gr., Max : 500 gr
DIMENSIONS	40 x 50 x 35 cm
WEIGHT	110 kg
PACKING	Wooden Chest
ELECTRICAL	Relay System
PNEUMATICS	Turkish and Europa brands
AIR PRESSURE	6/8 bar
TENSION	380 Volt - 50 Hertz - 3 Phase
BODY	AISI 304 SS Frame

Operation system

    This machine is working manually. Rotary table rotates manually by the operator. Holes on rotary table sits to fingernail system at the end of every movement which carried out by the operator. Filling and sealing application  are carried out automatically. Two line dating is also available one of which is for production  date and another is for expiration date station optionally . Placing cups , lids and the taking ready cups from holes are carried out by the operator carried out by operator.

Which products can fill with our Cem-01 Model semi auto filler ?

Natural yoghurt, fruit yoghurt, cream, fruit, marmalade, dressings, milk, cream cheese, pudding, ayran, salad margarine, honey, jam, pet food, quark, mayonnaise, jelly, butter, cosmetic creams, paste, mustard, soup, yogurt, Juice, water...
