CEM-1 MODEL
AUTOMATIC ROTARY PLASTIC CUP FILLING SEALING MACHINE

Cem-1 Model Rotary Yogurt filler : 1500 Cups / Hour depending on volume and filling viscosity

Standart model machine stations

1- Cup dropping

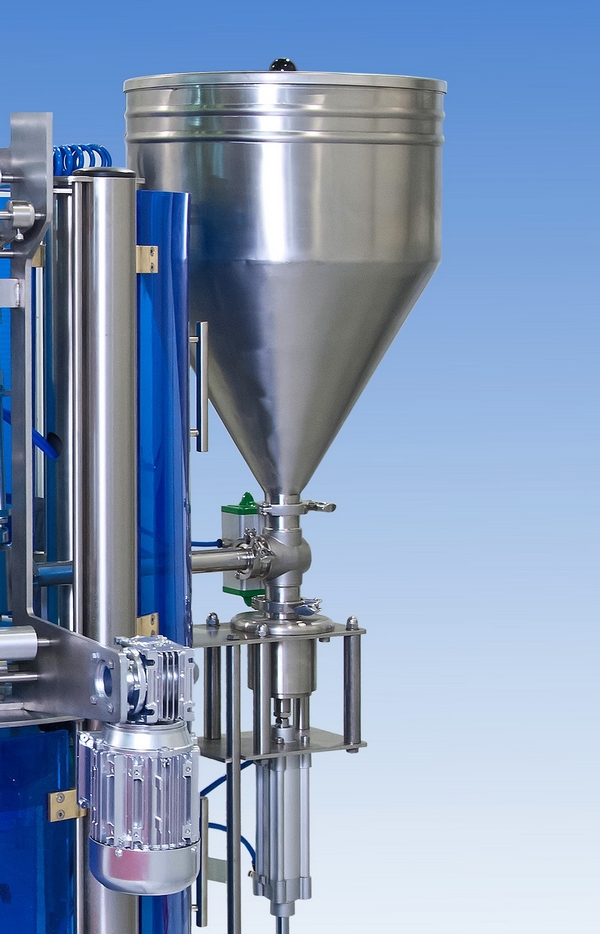

2- Filling station
3- Alu-lid placing ( pre-cuted lid )
4- Sealing
5- Dating

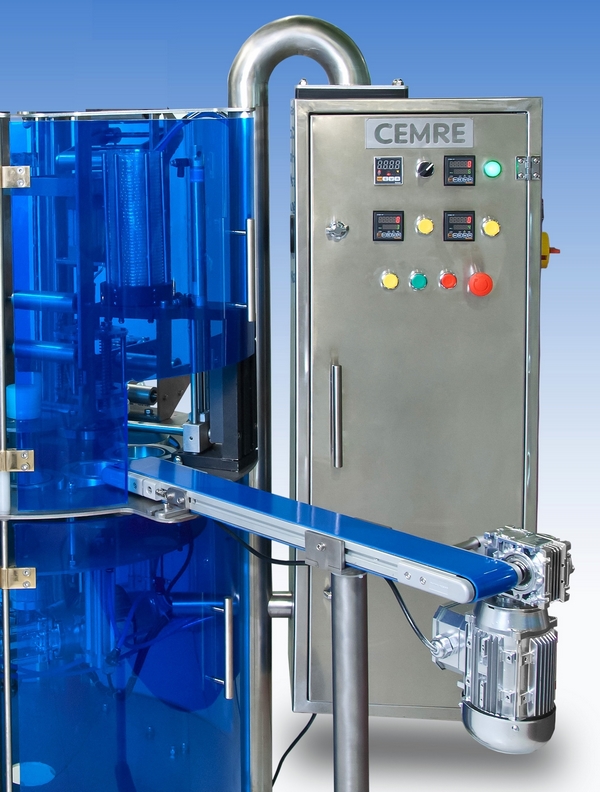

6- Exit conveyor

Tecnical Specifitions

MODEL	Cem-1
CAPACITY	1.500 / per hour
CUP SIZE	Max. 125 mm diameter plastic cups.
FILLING RANGE	Min : 50 gr., Max : 500 gr
DIMENSIONS	100 x 100 x 180 cm
WEIGHT	400 kg
PACKING	Wooden Chest
ELECTRICAL	Relay System
PNEUMATICS	Turkish and Europa brands
REDUCTOR MOTOR	Turkish made
AIR PRESSURE	6/8 bar
TENSION	380 Volt - 50 Hertz - 3 Phase
CHASSIS	Machine is surrounded by flexi-glass
BODY	AISI 304 SS Frame

The cup filling machine has three photocell chek-points

1- Photocell to control for filling if there is any cup or not. Thanks to this photocell system, the machine would not waste the product. If there is no cups, then the machine would not fill.
2- Photocell control for the aluminum lids if there is no cup or not, thanks to this system if there is no cup then machine would not waste the aluminum lids.
3- Photocell control for the sealing, thanks to this system, it checks if there is any aluminum lids on the cups or not, if there is no lids on the cups then the machine the cups will not reach the sealing unit and the machine stops.

Which products can fill with our Cem-1 Model cup filler ?

Natural yoghurt, fruit yoghurt, cream, fruit, marmalade, dressings, milk, cream cheese, pudding, ayran, salad margarine, honey, jam, pet food, quark, mayonnaise, jelly, butter, cosmetic creams, paste, mustard, soup, yogurt, Juice, water...

Which additional options are possible on the yoghurt cup filling sealer machine?

-Laminar flow-HEPA filter unit
-Second filling station for multiple products filling
-Recipe placing between lid and cap
-Cutting and sealing from roll lid
-UV-light for cup and lid sterilization
-CIP cleaning system
-Exit Turn Rotary table
